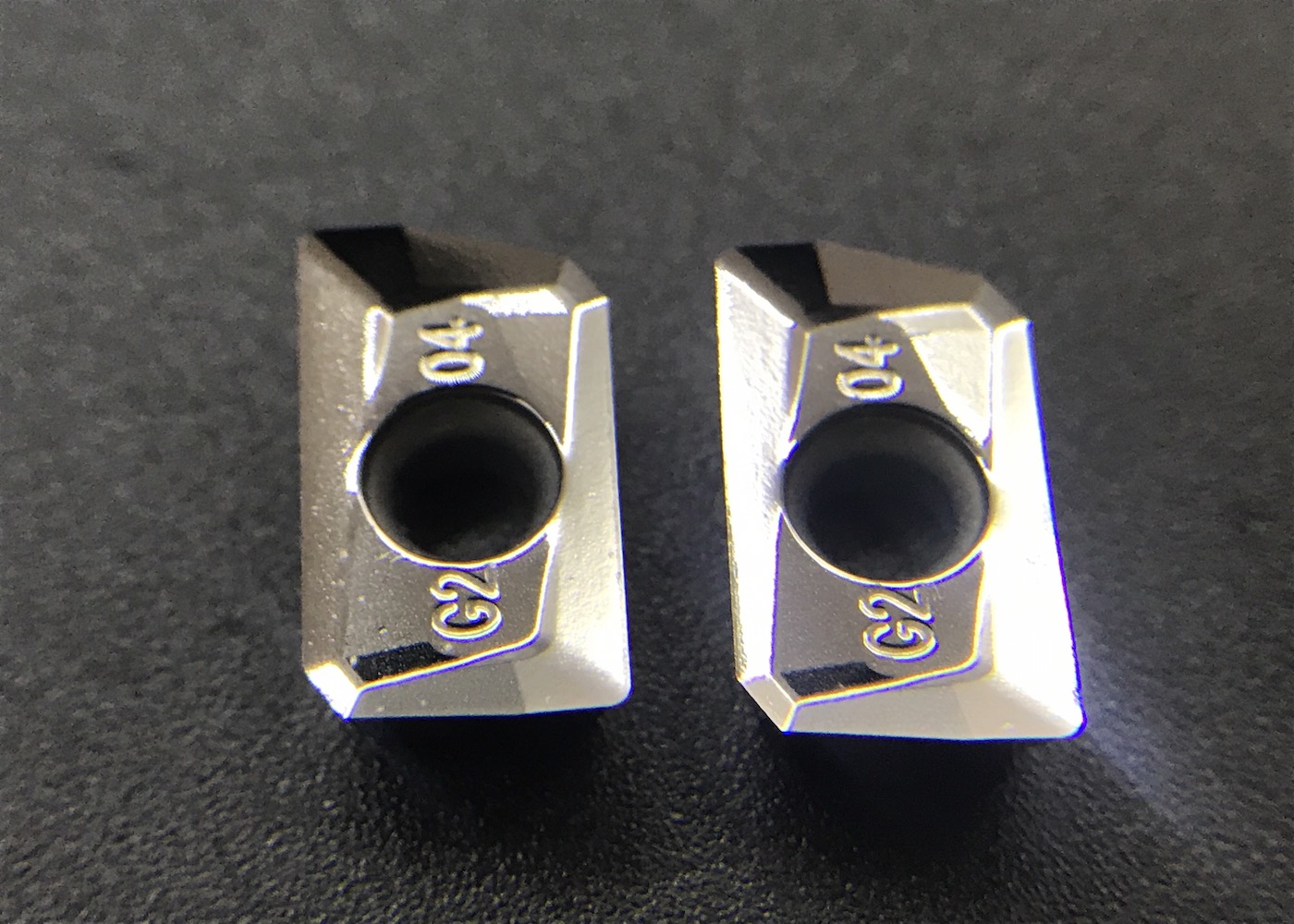

APGT1604PDER Aluminum Turning Inserts With Large Front Angle Sharp Edge For Milling

Brand Name : MMM

Model Number : APGT1604PDER

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 10 PCS

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 10,000 PCS/Month

Delivery Time : 5-15 Days

Packaging Details : Internal Plastic Box Packaging

Application : Aluminum Milling

Material : Cemented Carbide

Grade : MA15

Type : APGT1604PDER

Coating : Uncoated

Workpiece : Aluminum,Non-ferrous Metal,copper

Color : Uncoated for Aluminum

Package : 10pcs/plastic Box

Keywords : Cemented Carbide CNC Inserts,Aluminum alloy insert

Stock : carbide inserts with stock available

Contact Now

APGT1604PDER Aluminum Turning Inserts with Large Front Angle Sharp Edge for Milling

Feature Advantage:

High-precision five-axis grinding machine for high indexing accuracy. Large front angle, sharp edge. Special surface polishing technology reduces cutting resistance and eliminates the formation of built-up edge. The flawless cutting edge guarantees the stability of the insert. A harder carbide substrate improves the wear resistance of the insert.

Grade:

Grade

Coating

Performance

Equivalent Grade

MN10

Uncoating

Ultrafine grained carbide, uncoated grade.
Excellent wear resistance, high strength and resistance to thermal deformation.
Suitable for processing materials such as non-ferrous metals and superalloys.
Better versatility and economy.

H10
HTi10
H01

Types:

ISO standard turning inserts are available in a variety of conventional types

Serial	Type	MN15
AP	APGT1135 -AL	★
AP	APGT1604 -AL	★
RC	RCGT10T3MO -AL	★
RC	RCGT1204MO -AL	★
AD	ADGT1604 -AL	★
SE	SEHT13T3 -AL	★
SE	SEET1204 -AL	★

Recommended Cutting Parameters:

				MN10
				Feed (mm/rev)
				0.05 - 0.35
ISO	Material	Heat Treatment	Hardness (HB)	Speed (m/min)
N	Aluminum Alloy	Un-Heat Treatment	60	1750 - 800
N	Aluminum Alloy	Heat Treatment	100	510 - 250
N	Cast Aluminum Alloy	Un-Heat Treatment	75	460 - 175
N	Cast Aluminum Alloy	Heat Treatment	90	300 - 110
N	Copper Alloy	Lead Alloy	110	610 - 205
N	Copper Alloy	Copper	90	310 -195
N	Copper Alloy	Copper, Lead-free Copper, Electrolytic Copper	100	225 - 115
